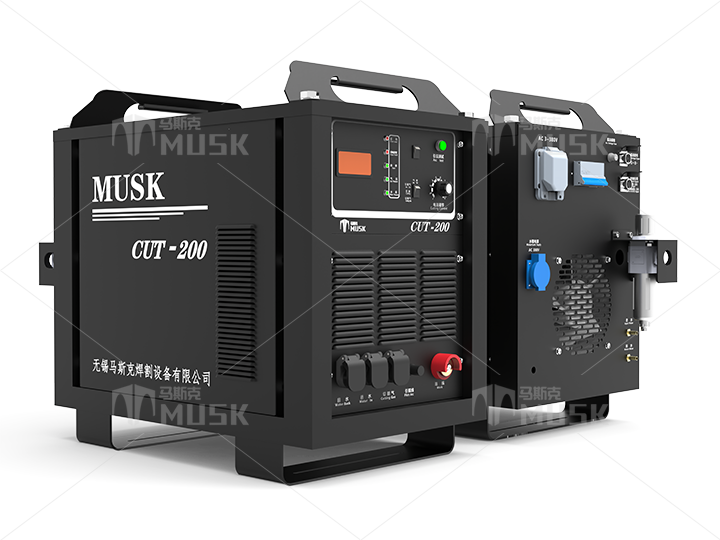

Cut-200 Straight


Product usage
● Mainly used in CNC plasma automatic cutting, suitable for cutting and blanking of metal materials;
● Suitable for metal cutting;
● Water mist can be added to cut non-ferrous metals.

Features
● Support torch anti-burning function;
● High load rate, specially developed for heavy industry;
● The current is infinitely adjustable;
● Supports corner signals;
● Full-bridge soft-switching technology;
● Arc gas cutting gas test function;
● Built-in overcurrent, overvoltage, air pressure, temperature and other multiple protections;
● Working status head-up display function;
● Arc ignition test function;
● Support oxygen cutting;
● Water stop function;


Technical parameters
Rated input voltage 3~380V 50Hz±15% Insulation class Class F
Power Capacity 40 KVA Protection Level IP21
No-load voltage 350V Working gas/pressure Air/0.45-5MPa
Current adjustment range 30~200A Dimensions 760*790*430
Load Duration 100% Weight 63KG

Configuration Parameters   Cutting Parameters
Power cord 3-380/4-380 16mm2300/500V Max Perforation Thickness 30mm
Ground Wire 16mm2300/500V Quality Cut Thickness 25mm
Cut the ground wire 50mm2300/500V Edge Cut Thickness 70mm
Air source 0.8-1.0MPa
Adapted torch Machine/Hand/Gouging

Factory configuration
Host 1 Fuse 1 (250V10A)

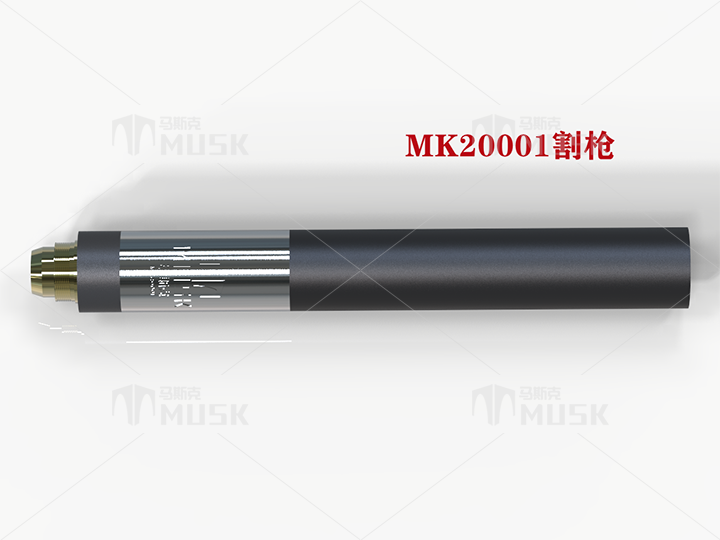

Cutting torch 1 (water cooling option) Fixed feet 4
torch cable 6.5M Water tank 12L (optional)
CNC Plug 2 cores/4 cores each 1


 200A 20mm carbon steel

200A perforated 20mm

200A perforated 20mm carbon steel
